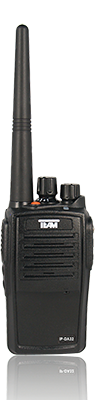

The TeCom IPDA32 dPMR-446 is a solid, easy to use
analog-digital dPMR-446 that is easy to use, registration and fee-free
Handheld radio, splash-proof according to IP67. The device has 2 frequency banks with 16 channels each and is preset with 8 analog
PMR frequencies, 8 digital dPMR-446 frequencies with 12.5 kHz bandwidth and 16 digital dPMR-446 frequencies with 6.25 kHz bandwidth. The device is designed for uncomplicated operation – a combined on / off volume control, a channel selection rotary switch, alarm button, send button and 2 programmable
Double function key, each of which can be assigned a maximum of 2 functions.

The belt clip is attached to this device with 2 screws. A device for a hand strap is available.

For programming the TeCom IP-DA32 dPMR we offer the optional software T-UP33 dPMR-446 USB (incl. USB transfer cable).

Battery, charger and earphones / microphones are compatible in the IP series TeCom-IP3 / -IPX5 / -IPZ5 / IP-DA32!

Equipment

• 32 channels (2 banks with 16 channels each) preprogrammed with 8 analog PMR, 8 digital dPMR (12.5 kHz) and 16 digital dPMR (6.25 kHz) channels
• Transmission power: 500 mW
• 3 programmable dual function keys can be assigned: Monitor, Scan, Noise ch tmp remove, VOX, High / Low power, Power detect, EMI, Work alone, Talk Around, Reverse, Priv ch scan, Area Switch, One Key Call 1-5
• digital call types single / group / collective call
• analog call type DTMF (transmission coding)
• digital encryption
• 51 CTCSS and 107 DCS (+ inverse)
• Battery saving function
• Blocked channels for busy channels (BCL)
• Voice announcement (english)
• Adjustable warning tones
• Adjustable LED displays
• Alarm tone (digital: + lone worker function)
• Channel search (various modes)
• Transmission time limit (TOT)
• VOX
• Bandwidth – analog: 12.5 kHz / digital: 6.25 / 12.5 kHz
• IP67 tested

Scope of delivery

• 1 x TeCom IP-DA32 dPMR-446
• 1 x battery pack (Li-Ion, 1600 mAh / 7.4 V)
• 1 x stand charger with power adapter
• 1 x belt clip
• 1 x instruction manual



Dimensions : 57 x 98 x 36 mm (case)

Weight : 226 g (incl. battery pack and antenna)

Connection : 2,5/3,5 mm – St./St. – Motorola compatible

Item no. : PR8114





APP-TeCom-IP3/-IPX5/-IPZ5/IP-DA32

Item no. PR2366

Battery pack for TEAM models TeCom-IP3 / -IPX5 / -IPZ5 / IP-DA32

Li-Ion – 1600mAh / 7,4 V

SLG-TeCom-IPX5/-IPZ5/-IP3/IP-DA32

Item no. PR2367

Charging cradle with mains adapter for charging APP-IP3 / -IPX5 / -IPZ5 / IP-DA32

MPP-TeCom-IP3/-IPX5/-IPZ5/IP-DA32

Item no. PR2373

Mobile adapter with cigarette lighter adapter for 12 V vehicle electrical system with spiral cable for TEAM TeCom-IP3 / -IPX5 / -IPZ5 / IP-DA32

DC 13,2 V / 7,2 V

T-UP33 dPMR-446

Item no. PR2422

TeCom IP-DA32 dPMR-446 programming software on CD-ROM with USB transfer cable
