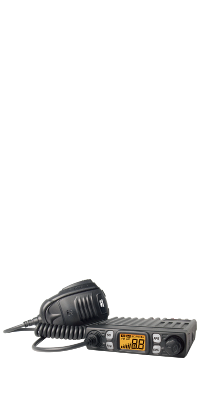

CB Mobile MiniCom

Our smallest CB mobile radio, the CB Mobile MiniCom, now has an S-meter display in the, recently, blue LCD. With the dimensions 104 mm (width) x 108 mm (depth) x 24.5 mm (height) it appears almost invisible. Mini in size but maxi in functionality, the CB Mobile MiniCom is equipped with many useful functions such as Channel search, priority channel 9/19, RFG and more.

Like other TEAM CB mobile radio devices, the CB Mobile MiniCom is available as a full multi-norm CB mobile radio device. It is easy to switch between five different European standards at the push of a button, taking into account the relevant national standard. The hp device variant is also available with 40 AM channels and 40 FM channels, each with 4 watts transmission power.

Equipment

  • LCD – white on blue background
  • automatic & adjustable squelch
  • Channel search
  • Priority channel 9/19
  • Keypad lock
  • Switching between AM / FM multi norm
  • Reception sensitivity [RFG]
  • S-meter indicator
  • Up / down microphone
  • DC 12 V connection
  • External additional loudspeaker connection

Scope of delivery

  • 1 x CB Mobile MiniCom with attached microphone
  • 1 x power supply cable
  • 1 x substructure assembly set
  • 1 x instruction manual
  • 1 x declaration of conformity



Dimensions : 24 x 100 x 104 mm (housing)

Weight : 445 g

Connection : microphone: 6-pin; Antenna: PL;

Item No. : CB3208 Full Multi Norm

Item No. : CB3220 Full Multi Norm PLUS MH-SGK ¼”







Versions

CB Mobile MiniCom Full Multi Norm CB3208

DE: 80 channels FM 26.565 – 27.405 MHz / max. 4 W and 40 channels AM 26.965 – 27.405 MHz / max. 4 W

EC: 40 channels FM 26.965 – 27.405 MHz / max. 4 W

EI: 40 channels FM 26.965 – 27.405 MHz / max. 4 W and 40 channels AM 26.965 – 27.405 MHz / max. 4 W

PL: 40 channels FM 26.960 – 27.400 MHz / max. 4 W and 40 channels AM 26.960 – 27.400 MHz / max. 4 W

UK: 40 channels FM 26.60125 – 27.99125 MHz / max. 4 W and 40 channels AM / FM 26.965 – 27.405 MHz / max. 4 W

Country approvals: BG, CH, CY, CZ, DE, EE, ES, FI, FR, GB, GR, HU, IE, IS, IT, LT, LU, LV, MT, NL, NO, PT, PL , RO, SE, SI, SK

CB Mobile MiniCom Full Multi Norm PLUS MH-SGK 1/4″ CB3220



Accessories

Komplettset

Item No.: CB3220

CB Mobile MiniCom PLUS MH-SGK 1/4”
